Product Name : Water tank filter

PureMax® water tank filtration system can be installed next to the water tank or water tower to ensure water is fully filtered throughout the home. The filter housing is made of high-quality stainless steel, so it will not crack or deform even when installed outdoors.

⊙ Features and Benefits

• Selected stainless Steel 304 material with electro-polishing surface treatment.

• Compact size for limited space.

• Standard 1" piping size for easy connection with water tank.

• No electricity required, maintenance-free.



⊙ Specifications

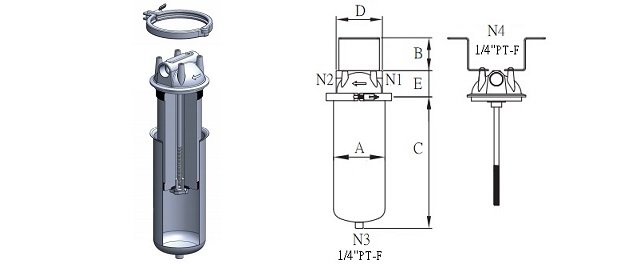

Model Dimensions (mm) Flow rate Weight Filter element Operating
A B C D E N1 N2 N3 pressure temp.
FR1 Ø127 64.5 323 114 81 1" 1" 1/4" 7GPM 4.5kg 10" big blue*1 5kg/cm2 40
FR2 Ø127 64.5 573 114 81 1" 1" 1/4" 14GPM 6.0kg 20" big blue*1
proimages/4-H1_Tank1.jpg

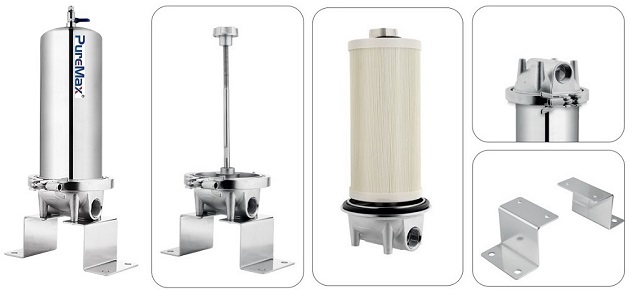

⊙ FR series Water tank filter

proimages/4-H1_Tank2.jpg
