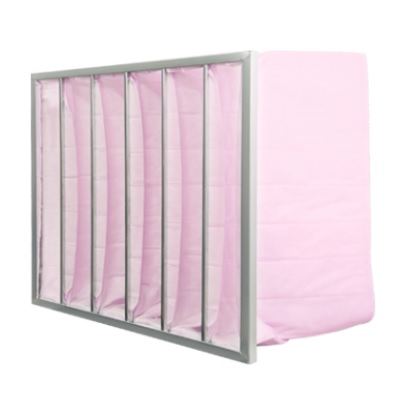

Pocket Filter

The pocket filters are constructed with synthetic media and assembled in galvanized steel frame. The pocket is flexible to maintain shape in changing condition.

 Specifications

Frame: Galvanized sheet metal for 20 mm header frame

Media: Synthetic fiber, ultrasonic seaming

Fire retardant grade: UL900

Max. Temperature: ≦ 80°C

Max. Humidity: ≦ 100% RH

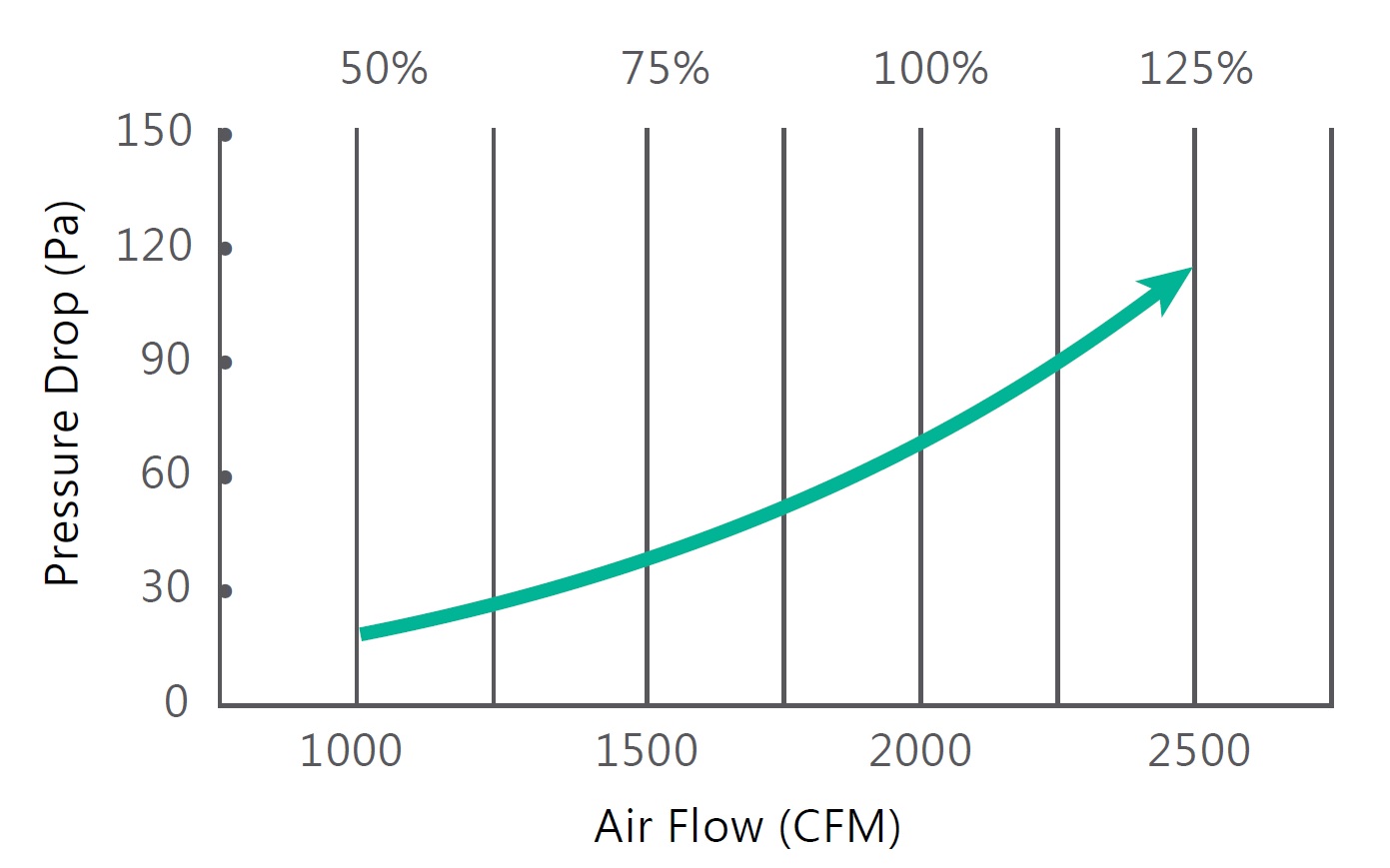

Rec. Final Pressure Drop: ≦ 250Pa

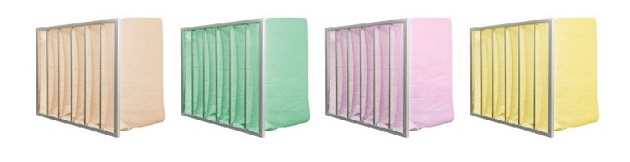

Efficiency:

M5 (EN 799), 40-60% / MERV 10 (ASHRAE 52.2) (Orange)

M6 (EN 779), 60-80% / MERV 11-12 (ASHRAE 52.2) (Green)

F7 (EN 779), 80-90% / MERV 13 (ASHRAE 52.2) (Pink)

F8 (EN 779), 90-95% / MERV 14 (ASHRAE 52.2) (Yellow)

Available with G4, F5 (M5), F6, F7, F8 & F9 efficiency.

◎ The pocket filters are available with 3, 4, 5, 6, 8, 10 & 12 pockets.

 Advantages

✔ High efficiency filtration with Low resistance

✔ Available for customized sizes

✔ Gasketing available

✔ Ultrasonic welding design

 Applications

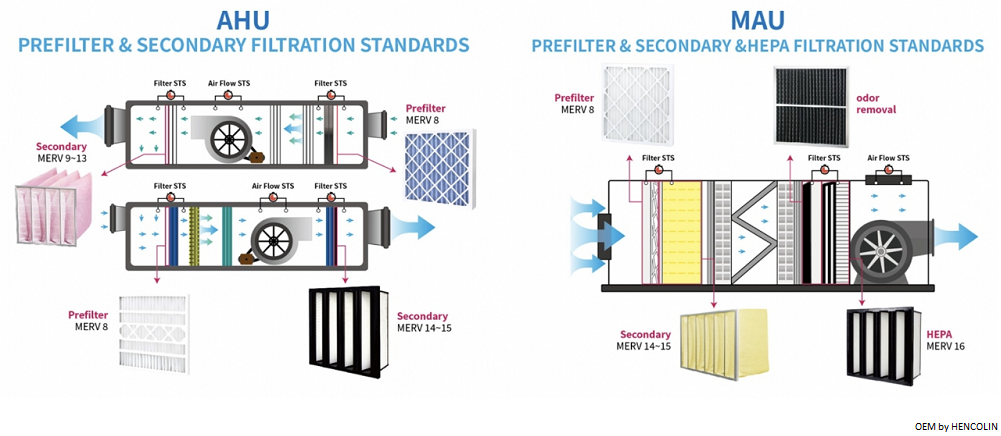

Suitable for being used in commercial & industrial areas or hospitals, schools, public buildings. Also being applied in air conditioning plants, gas turbine equipment and cleanroom, etc.
