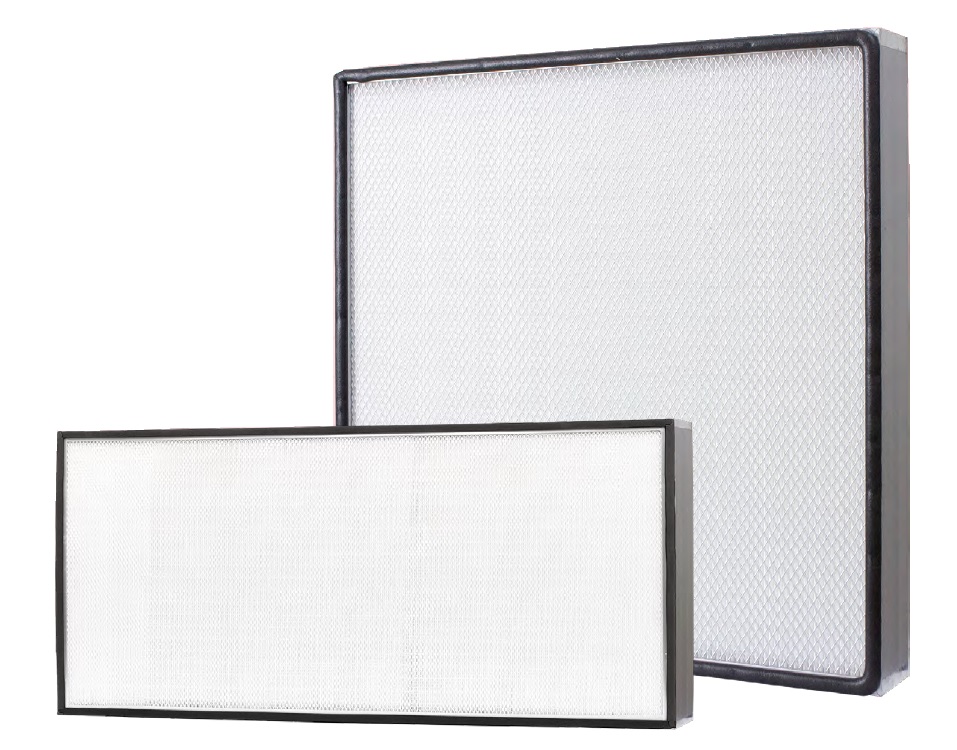

HEPA Filter

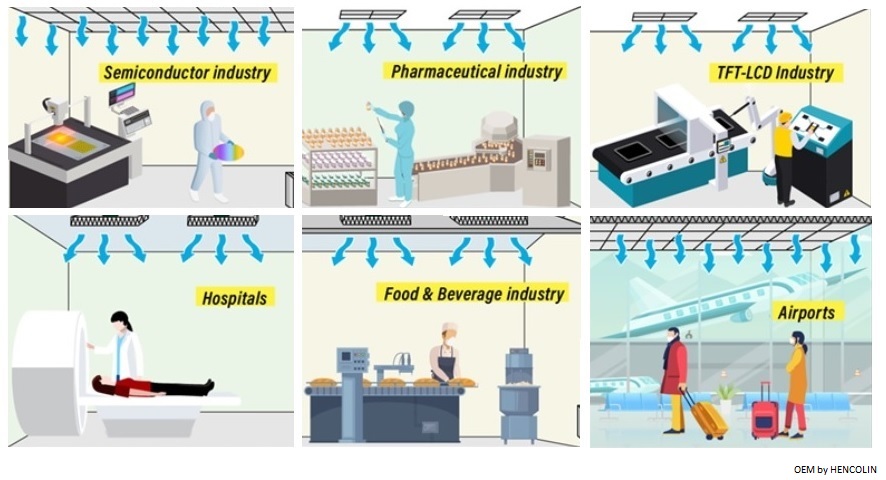

HEPA Filters are made and designed to catch very fine particulate matters in the air.  They are widely applied in HVAC systems such as in hospitals, pharmaceutical, aerospace, food industries, labs, electronic industries and cleanroom.

 Specifications

Frame: Extruded aluminum, Galvanized

Media: Glass fiber

Separator: Hot melt

Sealant: Polyurethane (PU)

Fire retardant grade: UL900

Max. Temperature: ≦70°C

Max. Humidity: ≦100% RH

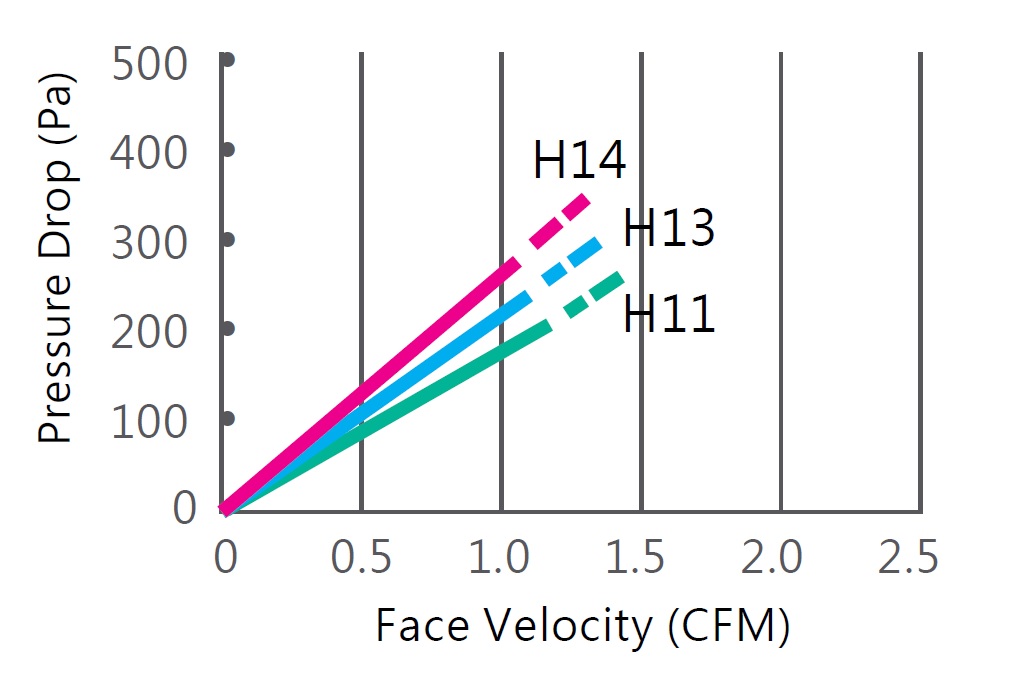

Rec. Final Pressure Drop: ≦500Pa

Efficiency:  H11 (EN 1822) / MERV 16 (ASHRAE 52.2) MPPS:≥95% / DOP: ≥99.9%@0.3 µm

                   H13 (EN 1822) / MERV 17-18 (ASHRAE 52.2) MPPS: ≥99.95% / DOP: ≥99.99%@0.3 µm

                   H14 (EN 1822) / MERV 19 (ASHRAE 52.2) MPPS：≥99.995% / DOP: ≥99.999%@0.3 µm

 Advantages

√   Lower pressure drop

√   Energy saving

√   Lightweight & easy to install

√   Interlock design on gasketing to secure the airflow without leaking

 Applications

Designed for being applied and optimized the applications, such as health care, commercial, educational and industrial buildings.
