Glue Dispensers

    Product Name : Glue Dispensers

    Precious glue dispensers, easy operating and with the feature of suck-back function to ensure no dripping, available with AC voltagle 100~240V, suitable for the dispensing of all kind of liquids

    ⊙ Specifications - Pneumatic series

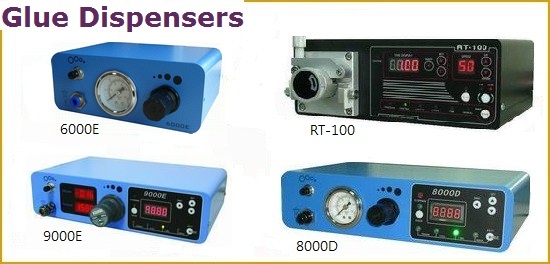

    Model 6000E 8000D 9000E
    Input voltage 24VDC / 0.5MA 24VDC / 0.5MA 24VDC / 0.5MA
    Air input 0~7 kg/cm2 0~7 kg/cm2 0~7 kg/cm2
    Air output 0~7 kg/cm2 0~7 kg/cm2 0~4 kg/cm2
    Vacuum adjustable adjustable adjustable
    Control continuance manual/timer/cycle manual/timer/cycle
    Digital timer x 0.01~99.99 sec. 0.01~99.99 sec.
    Program capacity x 40 programs 40 programs
    Dimensions (W*D*H) 165*150*65 mm 260*160*65 mm 260*160*65 mm
    Weight 0.9 kg 1.5 kg 1.7 kg



    ⊙ Specifications RT-100 Rotary tubing dispenser

    Model RT-100
    Power input 12VDC / 1A
    Speed 0.01~6 ml/min; 0.1~20 ml/min
    Shot pressure > 1.5 kg/cm2
    Rotor speed ~ Max. 120 rpm
    Rotor way CW / CCW
    Shot time range 0.01~99.99 sec.
    Dimensions (W*D*H) 210*150*80 mm
    Weight 3.5 kg

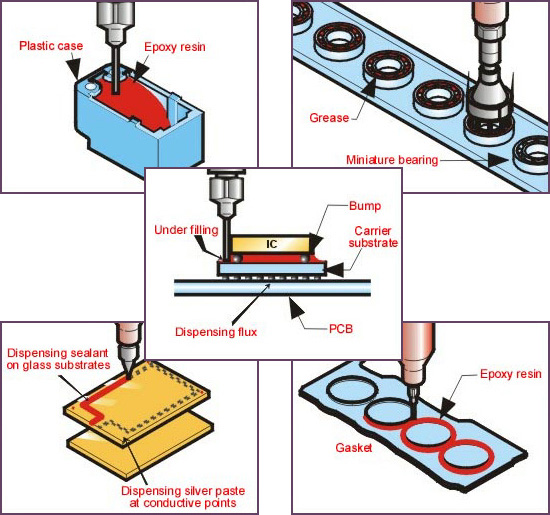

    ⊙ Applications - glue dispensers

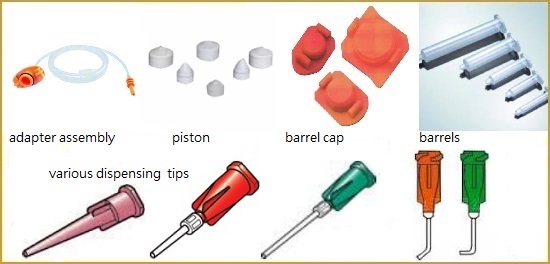

    ⊙ Accessories
