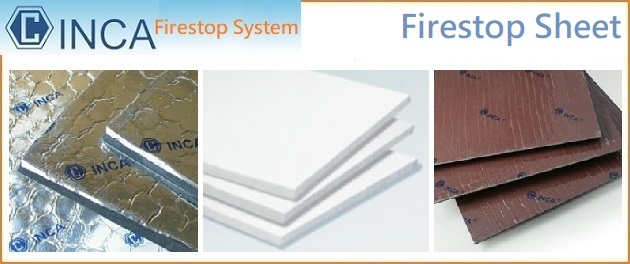

Fire stop sheet - supplied by Tech Seed Enterprise Co., Ltd.

⊙ Specifications

Item no.	FP-02	FP-03	FP-04+
Product name	Fabricated Firestop sheet	Firestop sheet	Multi-layer Firestop sheet
Size (LxW)	90x90cm	100x60cm	90x90cm
Thickness	7.7±1.3mm	25mm	≥2mm
Specfic gravity	^-	330±50g/cm³	^-
Color	-	White	-
Temp. resistant	-	1260°C (max.)	-
Expansion rate	5~10 times	-	≥10 times
Certificate	CNS 14514, 3hrs, Class A&B
	UL1479, 2hrs, F Rating	UL1479. 3hrs	UL1479, 3hrs, T&F Rating
	ASTM 3662; FM approved
Features & Usages	Easily trimmed to different sizes to fit any installation.
	Halogen free, Asbestos free.
	Stable and maintenance free.
	Works with nearly all construction materials.
	Close large penetration openings on walls or floors.

*Above values may vary without prior notice.

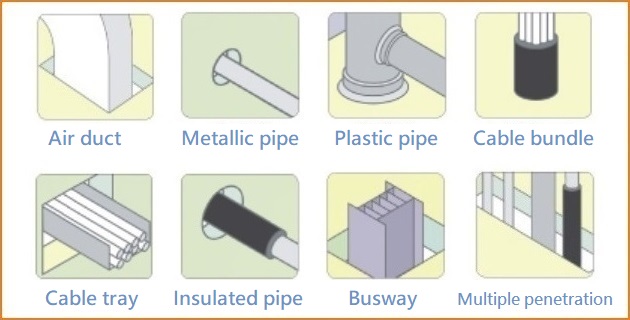

⊙ Applications

proimages/INCA-片板_應用_英.jpg
