Carbon Filter

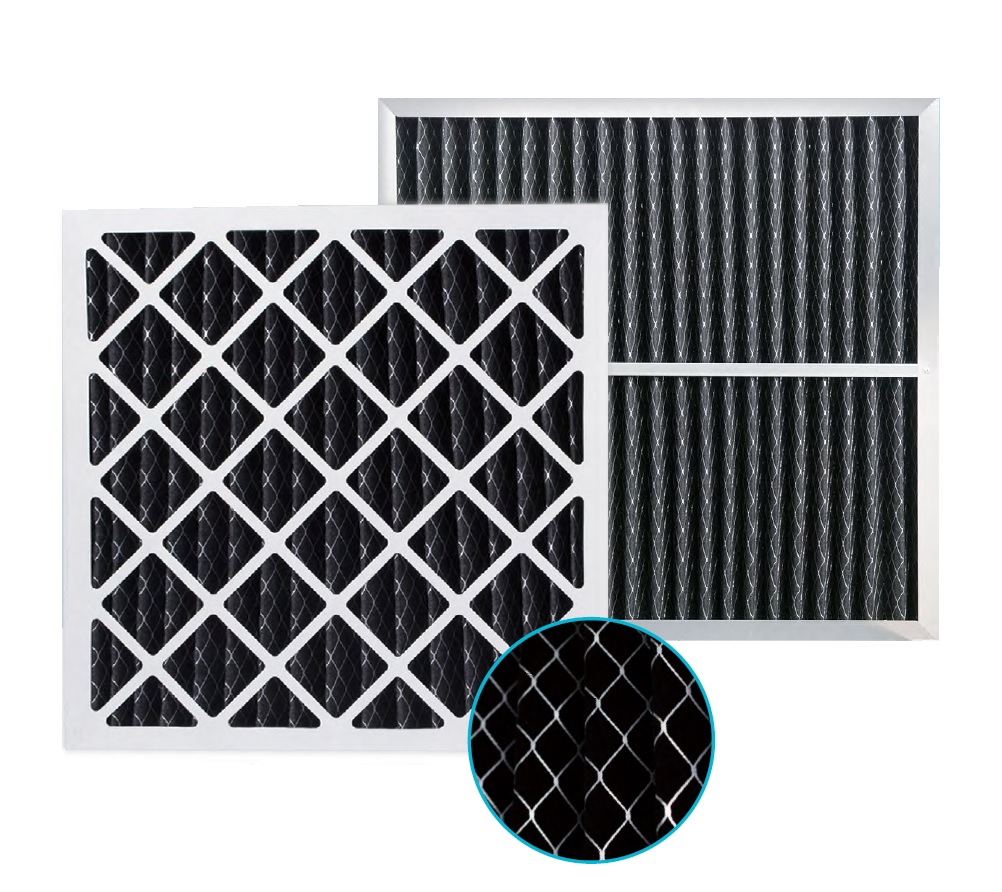

Carbon filters remove a wide range of odors and common indoor air pollutants.  A primary carbon panel pleated filter is constructed with a water resistant board and pleated media to provide the maximum effective area.

 Specifications

Frame: Rigid high wet-strength beverage board / Galvanized Iron

Media: Polyester + activated carbon

Efficiency: G4 (EN779) / MERV8 (ASHRAE 52.2)

Sealant: EVA Adhesives

Safety grade: UL900

Max. Temperature: ≦70°C

Max. Relative Humidity: ≦95% RH

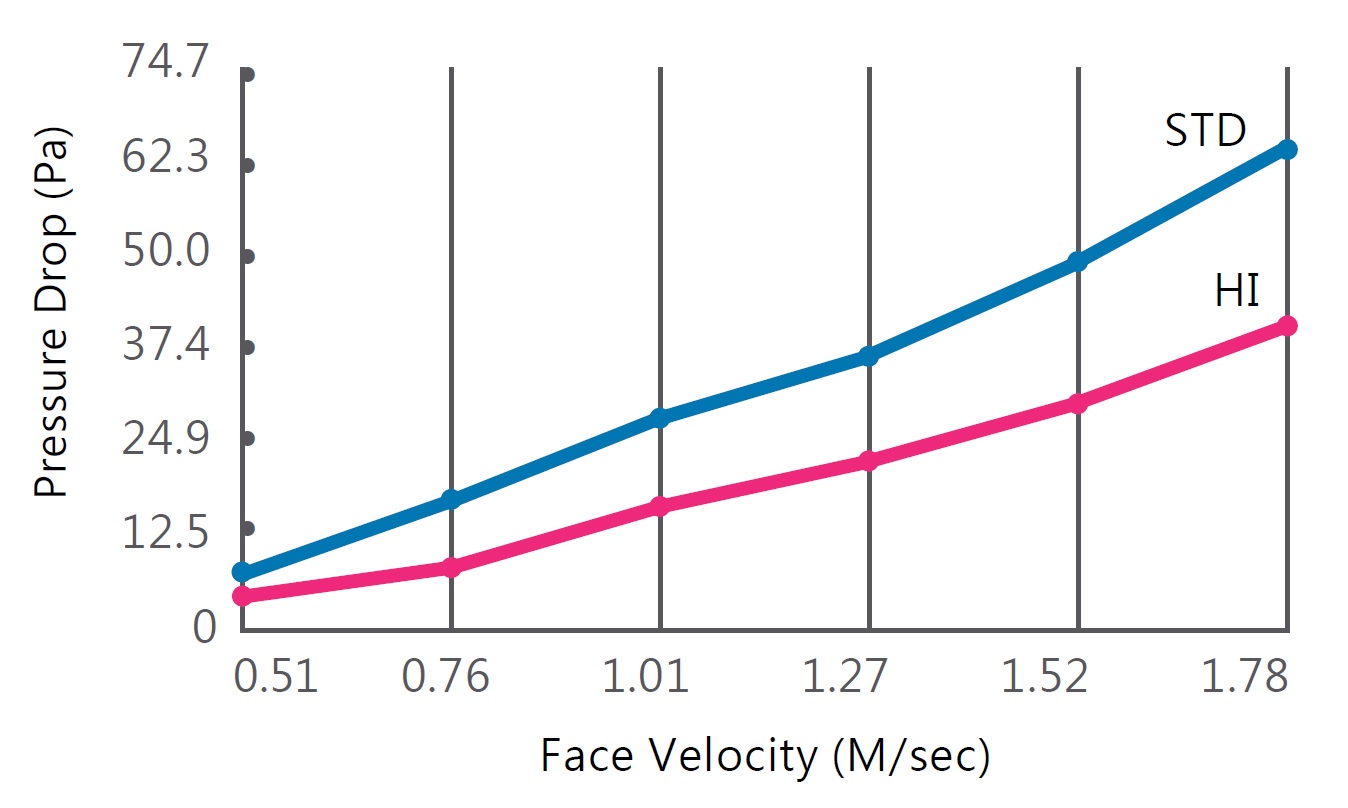

Rec. Final Pressure Drop: ≦200Pa

 Advantages

√  Lower pressure drop

√  Easy to install in wide range of HVAC systems

√  High moisture resistant

√  Cost saving

√  To extend life span

 Applications

Prefilter ventilation system, factories, residential, commercial and industrial areas
