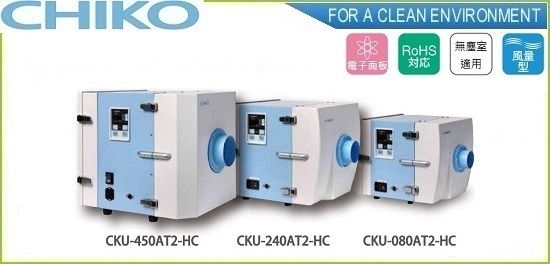

| CHIKO® CKU series Dust collector |
| CKU dust collector has very compact size, can be installed in limited space as A4 paper. Equipped with multi-layer filter bag as prefilter, high capacity and easy changeout. Main filter has 98% high efficiency for 0.3μm particles. If upgraded to HEPA filter, efficiency will exceed 99.97%, availabe in cleanroom Class1000~100. CKU series - compact size with high micro dust collecting capacity. Japanese technology - CHIKO® dust collector, the most economic and professional choice. |
⊙ Models
| Model No. | CKU-080AT2-HC | CKU-240AT2-HC | CKU-450AT2-HC |
| Power output | 150W | 250W | 450W |
| Rated current | 2.6A | 3.9A | 8.2A |
| Max. air flow | 3.3m3/min | 4.0m3/min | 7.0m3/min |
| Max. static pressure | 1.4kPa | 2.1kPa | 2.9kPa |
| Noise | 54(min.)~67(max.)dB | 54~68dB | 58~73dB |
| Suction port | ø65mm | ø75mm | ø100mm |
| Filter(1) prefilter | FB-25 | FB-30 | FB-700-22 |
| Filter(2) mainfilter | CHF-2525-50 | CHF-3030-50 | CHF-3535-70 |
| Filter(3) exhaust filter | CHF-2525-50 | CHF-3030-50 | CHF-3535-70 |
| Size (D*W*H) | 340*260*274mm | 380*310*324mm | 429*370*395mm |
| Weight | 13.6kgs | 19kgs | 30kgs |
| Voltage | 110V | 110V | 110V |
| Control panel | ○ | ○ | ○ |
| Signal output | ○ | ○ | ○ |
| Cleanroom | ○ | ○ | ○ |
* for general environment or cleanroom Class100,000~10,000
⊙ Specifications for Filters
| Filter(1) - prefilter | FB-25 | FB-30 | FB-700-22 |
| Material & type | 5-layer Polypropylene non-woven flter bag | ||
| Size | 250*250mm | 300*300mm | 700*220mm |
| Capacity | 2.5 liter | 4.5 liter | 5 liter |
| Efficiency | 45µm > 95% | ||
| Temp. resistance | 60℃ | ||
| Filter(2)(3) | CHF-2525-50 | CHF-3030-50 | CHF-3535-70 |
| Material & type | ABS frame | PP frame | ABS frame |
| Filter media | PP high efficiency filter media | ||
| Size | 250*250*50mm | 300*300*50mm | 350*350*70mm |
| Efficiency | 0.3μm > 99% | ||
| Temp. resistance | 60℃ | ||
*standard model: Filter(3) same as Filter(2).
| *Filter(3) - HEPA | HEP-2525-50 | HEP-3030-69 | HEP-3535-69 |
| Material & type | aluminum frame | ||
| Filter media | glassfiber | ||
| Size | 250*250*50mm | 300*300*69mm | 350*350*69mm |
| Efficiency | 0.3μm > 99.97% | ||
| Temp. resistance | 80℃ | ||
*When Filter(3) changed to HEPA grade, the machine is available with cleanroom Class1000~100.
*Please add V1 after the model no. when you want to equipe with HEPA filter(3), i.e. CKU-080AT2-HC-V1.
| Features of CHIKO® dust collectors |
| ● SIZE ● |
| Compact as A4 size, save space, easy carry or move. |
| Easily installed into any work-station to fit new production line or facility, save high expenses. |
| ● TECHNOLOGY ● |
| 100% Japan origin design, over 10 years R&D achievement. |
| Unique filtering devices, HEPA grade filters, Acitive carbon filters for odor... |
| Easy operation, noise average 60dB. |
| ● RELIABILITY● |
| Testing more than 10 thousand times, continuous 24hr operating without over-heat problem. |
| Designed under strict Japan standard, over-load/over-heat auto shut down protection. |
*Features may vary against different models.
⊙ Reference - Cleanliness & Air ventilation
| CLEANLINESS | ||||
| ISO 14644-1 | ISO 5 | ISO 6 | ISO 7 | ISO 8 |
| JIS-B9920 | Class 5 | Class 6 | Class 7 | Class 8 |
| FED.ST.209E* | 100 | 1000 | 10000 | 100000 |
| Ventilation | 250~400 | 150 | 75 | 20 |
| Particles | 3520 | 35200 | 352000 | 3520000 |
| Examples | liquid crystal or IC fab. | hospital operating room | drugs factory | PC assembly factory |
*FED.ST.209E: this stanard had been replaced by ISO 1644-1 since Nov.2001.
--Ventilation: the regulation of air ventilating times per hour.
--Particles: allowanced quantity of particle size 0.5μm per m3.
⊙ Customers list
| Name | Industry |
| Panasonic Electronic (NATIONAL) | home appliances |
| MATSUSHITA Denki Sangyo | electrical engineering |
| SONY | electronics |
| SHARP | electronics |
| CANON | optics |
| TDK | optical media |
| MINOLTA | optics |
| SHINETSU Kagaku Kogyo | silicone |
| YUASA Techno | battery |
| EPSON SEIKO | electrics |
| TOYOTA | vehicles |
| YAMAHA | instruments |
| NICHIA Kagaku Kogyo | LED |
| Nihon Gaishi (NGK) | energy |
| TOBA Yoko | FA machines |
| FUJITSU Automation | automation |
*sorry for can't show all...

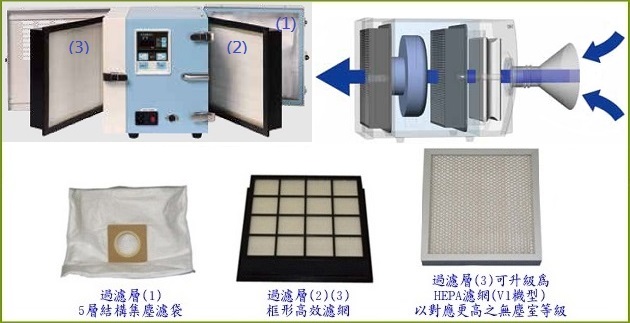

⊙ CKU series - Structure & Filters

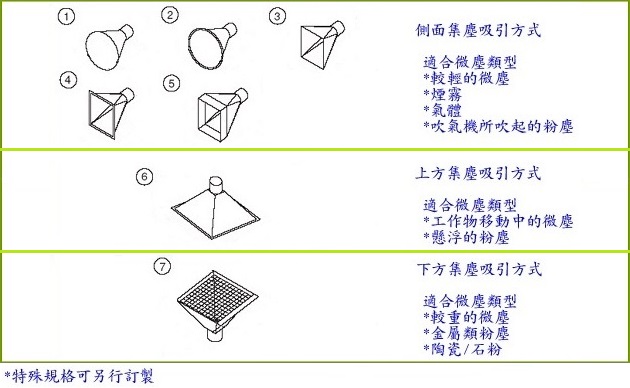

⊙ Suction hoods - design & selection
