CBA-1000 series

    Product Name : CBA-1000 series
    CHIKO® CBA-1000 Laser clean series
    Laser applications are now widly utilized in many industry, but the fume and particles caused by are always a headache problem. CHIKO® CBA-1000 laser clean series, through its patented design—ventilates zeolite to foaming a protect layer on the filter surface as well as the auto dedust function, effectively extends the filter service life and enhances the filteration efficiency.  Welcome to experience our - CHIKO® CBA-1000 laser clean series - the signficant difference on the performance.



    ⊙ Models

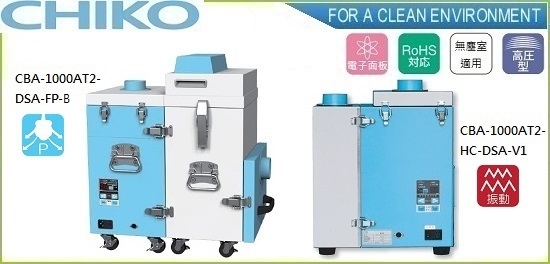

    Model no. CBA-1000AT2-DSA-FP-B CBA-1000AT2-HC-DSA-V1
    Power output 450W
    Rated current 6.5A
    Max. flow 2.6m3/min 2.7m3/min
    Max. static pressure 9.5kPa
    Noise 54~59dB
    Suction port ø75mm (ø65, ø50 or ø38mm available)
    Filter(1)*  FIL-300 (12pcs) HDF-3535-120-ZEO
    Filter(2) CHF-2030-50 (PP media, 0.3µm ≥ 99%)
    Filter(3) active carbon ACC-3220-100 (Paper frame, active carbon pellet 3kg inside)
    Filter(4) exhaust HEP-3220-69 (HEPA grade, aluminum frame+glassfiber media, 0.3µm ≥ 99.97%)
    Size(D*W*H) 557*372*666mm 399*360*467mm
    Weight 62kg 31kg
    Voltage 100V (option 200V, but max. air flow will reduce 0.2m3/min.)
    Auto dedust function Pause (reverse air flow) Vibration (dedust lever)
    Electric control panel ○ ○
    Signal output ○ ○
    Cleanroom ○ ○

    *CBA-1000AT2-DSA-FP needs extra compressed air (0.2Mpa) for pause function.



    Filter(1)* FIL-300 HDF-3535-120-ZEO
    Shape Star type filter cartridge Special frame
    Material adaptor: PC+carbon frame: ABS+clear PC cover
    Media Porous PE sintering+carbon PE media+SS support
    Size ø53*300mm 350*350*120mm
    Additive Zeolite powder
    Efficiency 5μm ≥ 99.99% —
    Temp. resistance 60℃

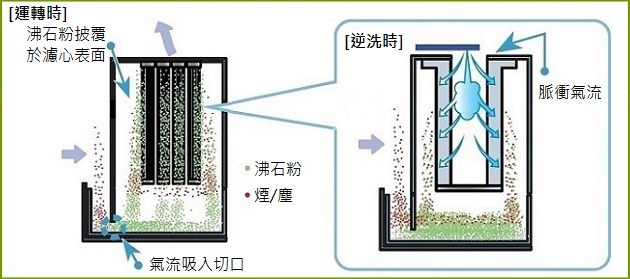

    ⊙ Auto dedust function CBA-1000AT2-DSA-FP

    proimages/Pause-630.jpg

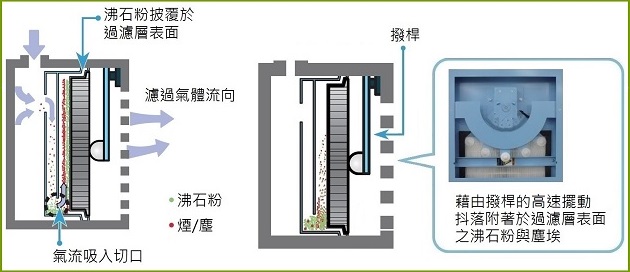

    ⊙ Auto dedust function CBA-1000AT2-HC-DSA-V1

    proimages/Vibration-630.jpg

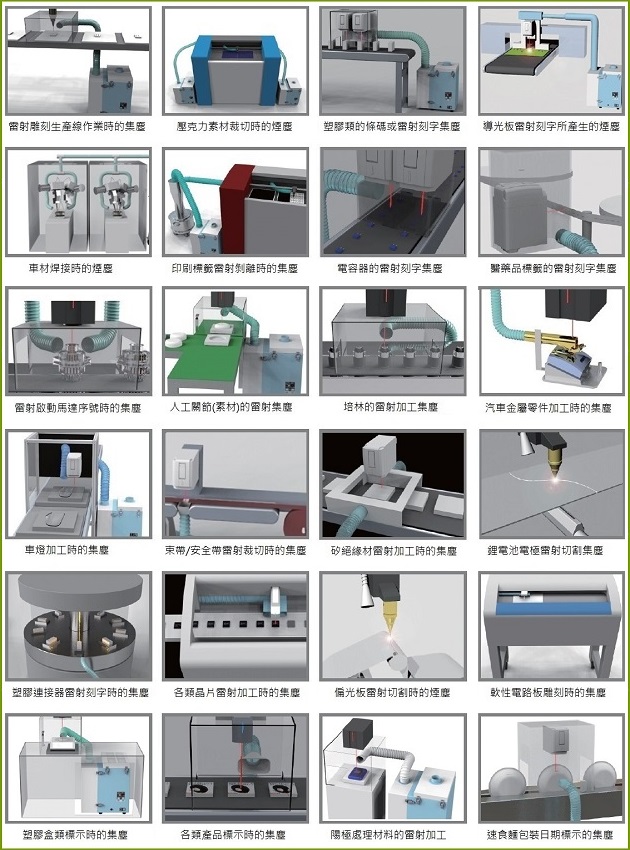

    ⊙ Applications-laser marking, engraving, cutting, welding...

    proimages/CBA-1000-app.jpg
