Laser cutting machine

    Product Name : Laser cutting machine
    ⊙ LaserPro FMC280  Laser cutting system
    User-friendly laser cutter - the ultimate laser cutting system FMC280, consitent fiber laser source up to 150W.  Through precious DC servo motor driving control system to achieve an excellent graph or texts cutting result on thin metal materials.  LaserPro FMC280 ought to be the most compact sized, professional laser cutting system.



    ⊙ Why FMC280
    ● Extra long service life
    FMC280 has durable operating system, better vibration and temperature or humidity resistance, long service life.
    ● Low maintenance
    Stable fiber laser source is the top choice for laser cutting system nowadays.
    ● Excellent cutting quality
    By way of high quality laser beam, FMC280 can cut a best result on thin metal materials.
    ● Lower energy consumption
    Fast cutting speed let the FMC280 has a lower energy consumption than others.
    ● DC servo motor
    High efficiency close-loop DC servo motor provides precious & reliable driving system.
    ● Highest CP value
    Comparing to expensive models, FMC280 fiber laser cutting system has highest CP value.



    ⊙ Specifications

    Model No. FMC280
    Laser Source 1070nm fiber laser source, 1.5kW peak power
    Work Area 28 x 14.5in. (712 x 370mm)
    Max. Part Size (W x L x H) 30.9 x 21.3 x 4.7 in. (786 x 542 x 120 mm)
    Dimensions  (W x L x H) 44.3 x 28.3 x 70.8 in. (1125 x 720 x 1800 mm)
    Cooling Air Cool
    Drive Closed-loop DC Servo Control
    Maximum Motor Speed 20 IPS
    Speed Control Adjustable from 0.1~100% (Up to 16 color-linked speed settings per job)
    Power Control Adjustable from 0~100%  (Up to 16 color-linked power settings per job)
    Distance Accuracy 0.254 mm or 0.1% of move, whichever is greater
    Z-Axis Movement Automatic
    Engraving Capability 256-level grayscale image processing capability
    Resolution (DPI) 125, 250, 300, 380, 500, 600, 760, 1000, 1500, 3000
    Computer Interface 10 Base-T Ethernet, Full speed 2.0 USB
    Memory Buffer 32MB standard
    Display Panel 4-line LCD panel showing current file name, total working time, laser power, cutting speed, file(s) loaded into memory buffer, setup and diagnostic menus LCD
    Safety Class I Laser Product Compliant with EN60825
    Class II Laser Product Compliant with CDRH
    2006/42/EC Machinery Directive Compliance
    Electrical 200-240VAC, 50/60Hz Auto Switching, Max. 12A

    *Max. moving speed does not mean the max. productivity.  Contact us for more detials.

    *All spec are subject to change without prior notice.

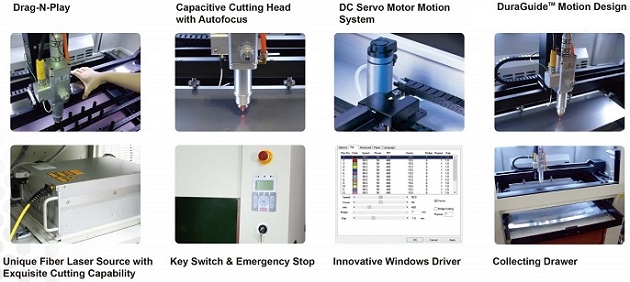

    ⊙ Special features

    proimages/FMC280_features.jpg



    ⊙ Optional accessories

     proimages/FMC280_選配.jpg
