Products

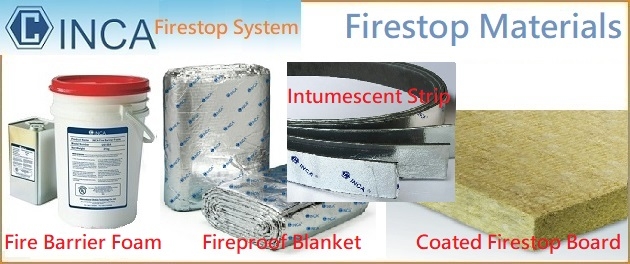

Firestop foam, strip, blanket, board...
⊙ Specifications
| Item No. | US150 (soft) | US110 (hard) | FB01-15 | INFS0812 | FP05 | |||
| Product name | 2-component Fire barrier foam | Fireproof blanket | Intumescent strip | Firestop board | ||||
| Base | part A | part B | part A | part B | ceramic + foil | composed foil | natual rock | |
| Spec./size | 14kg pail | 6kg pail | 20kg pail | 20kg pail | 7200x600x13mm (LxWxT) | 2Mx60x5mm (LxWxT) | 1200x600x50mm (LxWxT) | |
| Mixing ratio | A:B = 7:3 | A:B = 7:4 | - | - | - | |||
| Foaming time | 1~5min. | 1~5min. | - | - | - | |||
| Foaming temp. | 20~30°C | 20~30°C | - | - | - | |||
| Storage temp. | 15~25°C | 15~25°C | - | - | - | |||
| Full curing | 24hr. | 24hr. | - | - | - | |||
| Foam rate | aprx. 2.5~4times | aprx. 5~7times | - | - | - | |||
| L.O.I. | ≥32 | ≥32 | - | ≥40 | - | |||
| Expansion rate | 4~10times | 2~5times | - | ≥20times | - | |||
| Test | CNS 14514, 3hrs, Class A & B | CNS14514, 2hrs. | CNS14514, 3hrs. | |||||
| UL1479, 2hrs, T&F Rating | UL1479, 3hrs, F&L | UL1479, 3hrs, T&F | UL1479, 3hrs | |||||
| ASTM E662 | FM approved | |||||||
| Usage | seal single or multiple penetrations through concrete or masonry floor slabs, walls. | enclosure for cable tray, indulsted or metla pipie, air duct... | sealing for plastic or insulated pipe, busway and multiple penetration. | as a permanent fire barrier to seal multi penetrations. | ||||
*Above values may vary without prior notice.
⊙ Applications
