Laser cutting machine
| ⊙ LaserPro FMC280 Laser cutting system |
| User-friendly laser cutter - the ultimate laser cutting system FMC280, consitent fiber laser source up to 150W. Through precious DC servo motor driving control system to achieve an excellent graph or texts cutting result on thin metal materials. LaserPro FMC280 ought to be the most compact sized, professional laser cutting system. |
| ⊙ Why FMC280 |
| ● Extra long service life |
| FMC280 has durable operating system, better vibration and temperature or humidity resistance, long service life. |
| ● Low maintenance |
| Stable fiber laser source is the top choice for laser cutting system nowadays. |
| ● Excellent cutting quality |
| By way of high quality laser beam, FMC280 can cut a best result on thin metal materials. |
| ● Lower energy consumption |
| Fast cutting speed let the FMC280 has a lower energy consumption than others. |
| ● DC servo motor |
| High efficiency close-loop DC servo motor provides precious & reliable driving system. |
| ● Highest CP value |
| Comparing to expensive models, FMC280 fiber laser cutting system has highest CP value. |
⊙ Specifications
| Model No. | FMC280 |
| Laser Source | 1070nm fiber laser source, 1.5kW peak power |
| Work Area | 28 x 14.5in. (712 x 370mm) |
| Max. Part Size (W x L x H) | 30.9 x 21.3 x 4.7 in. (786 x 542 x 120 mm) |
| Dimensions (W x L x H) | 44.3 x 28.3 x 70.8 in. (1125 x 720 x 1800 mm) |
| Cooling | Air Cool |
| Drive | Closed-loop DC Servo Control |
| Maximum Motor Speed | 20 IPS |
| Speed Control | Adjustable from 0.1~100% (Up to 16 color-linked speed settings per job) |
| Power Control | Adjustable from 0~100% (Up to 16 color-linked power settings per job) |
| Distance Accuracy | 0.254 mm or 0.1% of move, whichever is greater |
| Z-Axis Movement | Automatic |
| Engraving Capability | 256-level grayscale image processing capability |
| Resolution (DPI) | 125, 250, 300, 380, 500, 600, 760, 1000, 1500, 3000 |
| Computer Interface | 10 Base-T Ethernet, Full speed 2.0 USB |
| Memory Buffer | 32MB standard |
| Display Panel | 4-line LCD panel showing current file name, total working time, laser power, cutting speed, file(s) loaded into memory buffer, setup and diagnostic menus LCD |
| Safety | Class I Laser Product Compliant with EN60825 Class II Laser Product Compliant with CDRH 2006/42/EC Machinery Directive Compliance |
| Electrical | 200-240VAC, 50/60Hz Auto Switching, Max. 12A |
*Max. moving speed does not mean the max. productivity. Contact us for more detials.
*All spec are subject to change without prior notice.
⊙ Special features

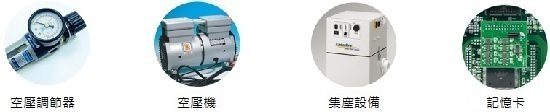

⊙ Optional accessories
